Ceiling Suspension System

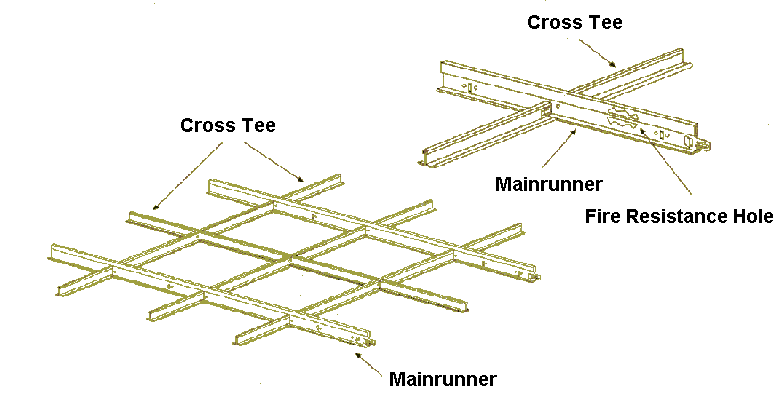

Overlap Type - Diagram

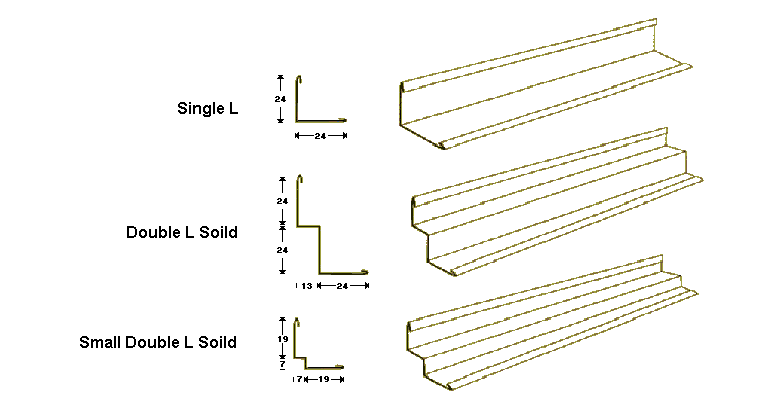

Wall Angle Models

Models	Size	Thicknes	Linear Measure	Bars/cartoon
010	24 x 24 mm	0.5	3660 mm (12')	40
011	24 x 24 mm	0.5	3050 mm (10')	40
012	24 x 24 mm	0.5	2440 mm (8')	40
021	24 x 13 x 24 x 24 mm	0.5	3050 mm (10')	30
022	24 x 13 x 24 x 24 mm	0.5	2440 mm (8')	30
041	19 x 7 x 7 x 19 mm	0.5	3050 mm (10')	40
042	19 x 7 x 7 x 19 mm	0.5	240 mm (8')	40
