Raised Access Floor Systems

¡@

OA Access Floor Panel
Anti-static HPL Covering

¡@

Anti-static Access Floor Panel ¡@
¡@ ¡@

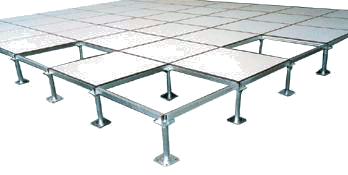

"Huatong" anti-static raised access floor panels are widely used in computer rooms. This access floor system has excellent anti-static performance. It can eliminate the static electricity produced by the computers when they are working and the stability of the computer will be maintained. Thus the life span of the computers will be prolonged. Meanwhile, raised floor panels will greatly facilitate the whole installation. The panels can be put directly on the rigid network system, which is made up of pedestals and stringers. The panel sizes are controlled with great precision, which assures the free interchange between panels.With convenient wire layout and various outlet boxes, the system can optimize the cabling in computer rooms.
HT/HPL-600 ¡@
¡@ ¡@
HP/HPL Panel with Edge Trim ¡@

¡@

Pedestal - 3

Specially designed for finished panels below 130mm height as standard pedestals.

  • Spec.: 3mm Thick * 76mm Square Top Plate
  • M16 screw
  • 2.5mm Thick * 95mm Square Base Plate
¡@ ¡@
Pedestal - 4

Specially designed for finished panels above 150mm height as standard pedestals.

  • Spec.: 3mm Thick * 76mm Top Plate
  • Tube 1: 22mm tube * 1.5mm thick wall / M18 screw
  • Tube 2: 23mm tube * 1.2mm thick wall / M20 screw
  • Tube 3: 25mm tube * 1.5mm thick wall / M20 screw

Above 3 types of tubes should be available according to your requirements.

Base Plate: 2.5mm Thick * 95mm

¡@

¡@ ¡@ ¡@ Concentrated Load ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@ ¡@
¡@ ¡@ ¡@ 0.100"/2.5mm 0.080"/2.0mm ¡@ ¡@ ¡@ ¡@ Rolling Loads
¡@ Ultimate Load Deflection Deflection Uniform Load Impact Load 10 PASS 10 PASS
Panel (lb) (kN) (lb) (kN) (lb) (kN) (lb/m2) (kN/m2) (lb) (Kg) (lb) (kN) (lb) (kN)
FS 700 2300 10.224 700 3.112 650 2.889 2500 11.113 100 45 650 2.889 450 2.000
FS 800 2600 11.558 800 3.556 750 3.334 2800 12.447 100 45 750 3.334 550 2.445
FS 1000 3300 14.669 1000 4.445 800 3.556 3500 15.558 150 68 800 3.556 600 2.667
FS 1250 3800 16.892 1250 5.557 1000 4.445 4000 17.781 150 68 1000 4.445 800 3.556
FS 1500 5000 22.226 1500 6.668 1250 5.557 5200 23.115 150 68 1250 5.557 1000 4.445
FS 2000 6000 26.672 2000 8.891 1500 6.668 6200 27.561 175 79 1500 6.668 1200 5.334
